Mundus Comfort
- Toughened glass 8–12 mm
- Max. door weight 150 kg, max. width 1100 mm
- Finish: satin & polished stainless steel, anodized, powder coated
- Locking: euro profile cylinder · Longevity 500,000 cycles
← Products
dormakaba
Interior Glass Systems, Fittings & Locks
Mundus, Universal, Arcos, ALEXA, Muto
The complete dormakaba Interior Glass Systems programme — fittings for toughened glass assemblies, aluminium frame profiles, manual sliding systems and euro profile cylinders — so that toughened glass becomes the architecture rather than the infill. Fittings suit single-leaf and double-leaf glass doors with sidelights and overpanels.
Gallery
Range & specifications
What’s available within Interior Glass Systems, Fittings & Locks
Sub-categories, series and technical data as published by the manufacturer. Tell us the opening and we will specify the right variant.
Mundus Premium
- Toughened glass 8–22 mm
- Max. door weight 200 kg, max. width 1300 mm
- Finish: anodized, powder coated, wet coated, stainless steel, glass on request
- Longevity 1,000,000 cycles
Universal Fittings
24 standard types for toughened glass assemblies — doors with sidelights and overpanels.
- Toughened glass 8, 10, 12 mm
- Max. door weight 130 kg, max. width 1300 mm
- Finish: anodised and RAL colours, brass, stainless steel
- Locking: non-lockable, profile cylinder or patch locks
Universal light Fittings
- Toughened glass 10–12 mm
- Max. door weight 100 kg, max. width 1100 mm
- Finish: stainless steel · Locking: euro profile cylinder
- Combines with all dormakaba floor spring door closers
Universal Arcos Fittings
- Toughened glass 8, 10, 12 mm
- Max. door weight 130 kg, max. width 1300 mm
- Finish: aluminium silver EV1, stainless steel
- 24 standard types for toughened glass assemblies
Beyond Fittings
- Toughened glass 10–12 mm
- Max. door weight 80 kg, width 1000 mm, height 2200 mm
- Finish: anodized colours
- 1- or 2-panel, sidelight, overpanel, glass assembly
Visur Fittings
- Toughened glass 10–12 mm
- Max. door weight 85 kg, width 1100 mm, height 2500 mm
- Finish: aluminium, aluminium silver EV1
Tensor & BM Fittings
- Tensor: glass 8/10/12 mm, max. weight 65 kg, height up to 2500 mm
- BM: glass 10 mm, max. weight 80–100 kg, polished stainless steel
- BM combines with dormakaba floor spring closer BTS 84
STUDIO & OFFICE hardware
- STUDIO Rondo / STUDIO Arcos: glass 8–10 mm, 45/55 kg
- OFFICE Junior / Classic / Arcos: glass 8–12 mm, 55 kg
- Locking: non-locking latch, profile cylinder, regular key, toilet lock
- Single- or double-leaf doors
ALEXA aluminium frame profiles
- AT23 / AT23E: glass 8–10 mm, 40 kg (2 hinges) to 55 kg (3 hinges)
- AT44 / AT50: glass 8–10 mm, 45–65 kg depending on hinge type
- AT45: glass 8/10/12 mm, visible profile width only 25 mm
- Compatible with all STUDIO and OFFICE hardware
Wall connection & Universal TP profiles
- Wall connection profile in aluminium or stainless steel, visible width 40 mm
- Clean finish of glass constructions to wall, ceiling and floor
- Universal TP: glass 8–19 mm, rail height 100 mm, indoor or outdoor

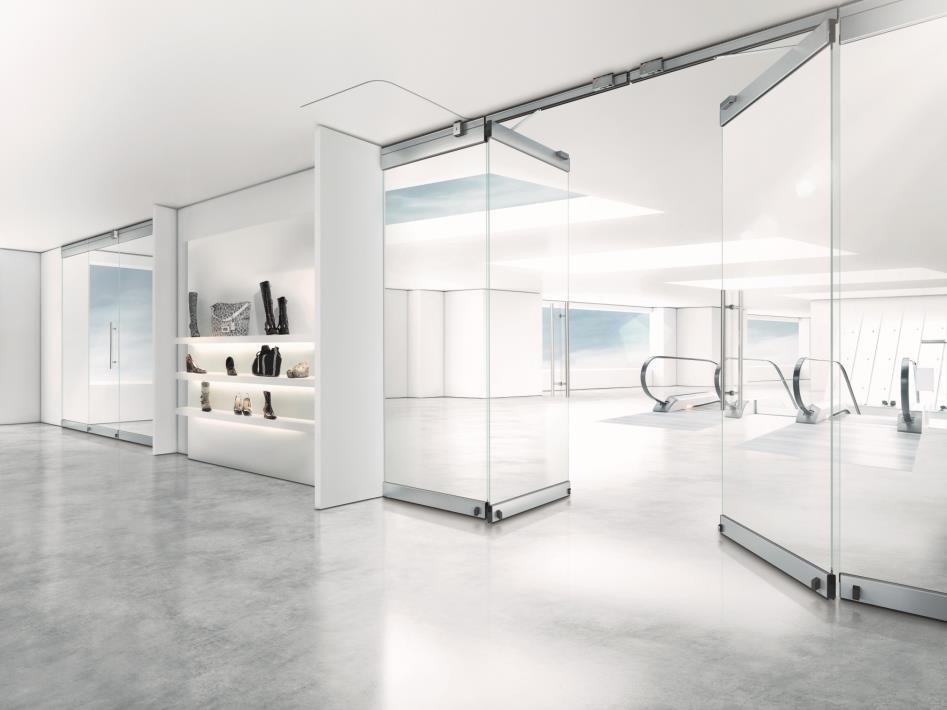

Muto manual sliding door system
- Series: Muto Comfort M60 / L80, Muto Premium XL80 / XL150, Self-closing, Telescopic
- Glass ESG or LSG up to 13.5 mm; timber up to 50 mm
- Max. door height up to 3000 mm; weight up to 150 kg
- Self-closing and Dormotion soft-stop functions
Key features
- Fittings families: Mundus, Beyond, Visur, Tensor, Universal, Universal light, Arcos Universal, BM

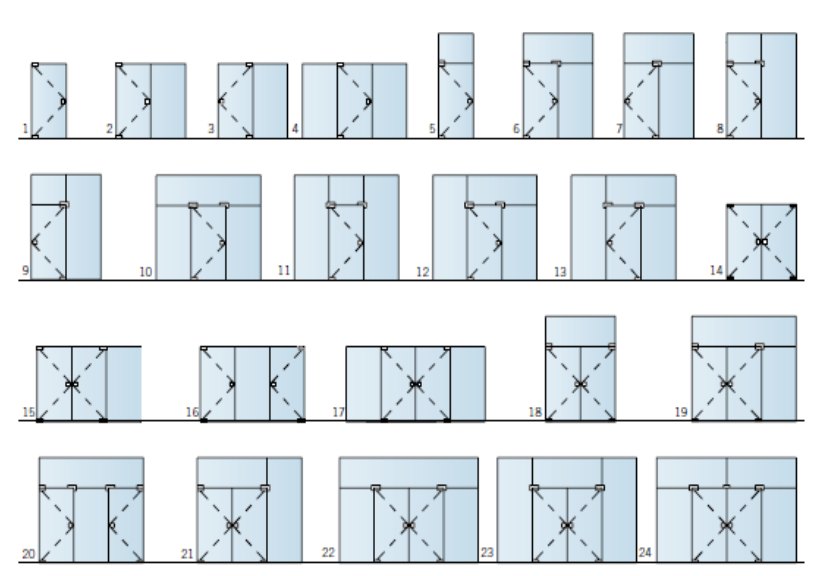

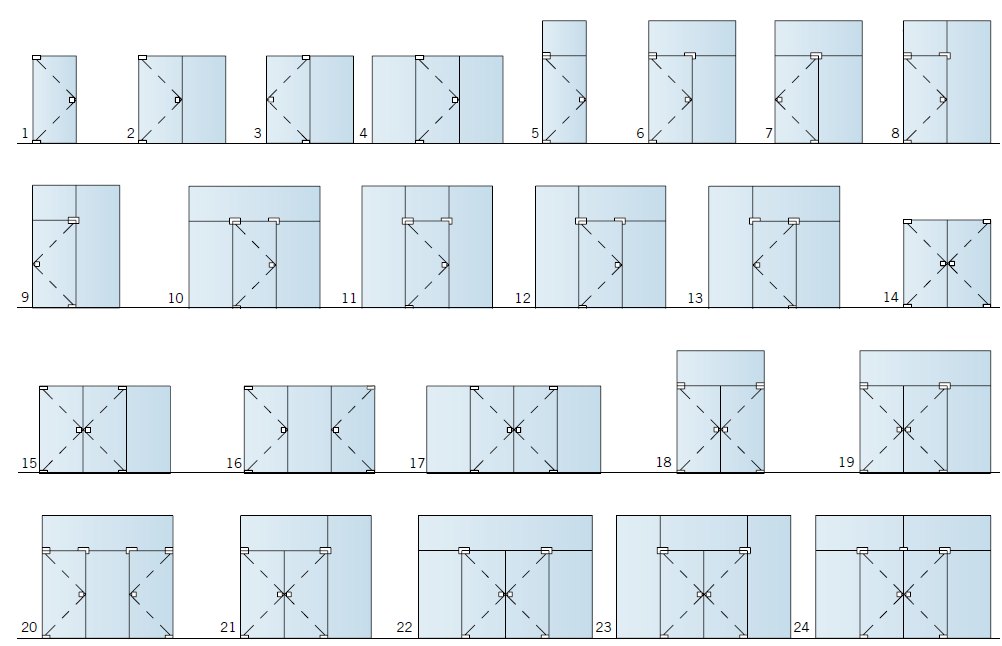

- Universal fittings offer 24 standard configurations for glass assemblies
- ALEXA aluminium frame profiles AT23, AT23E, AT44, AT45, AT50

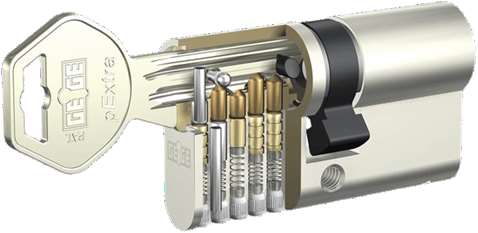

- Euro profile cylinders with patented key profiles that are extremely difficult to copy

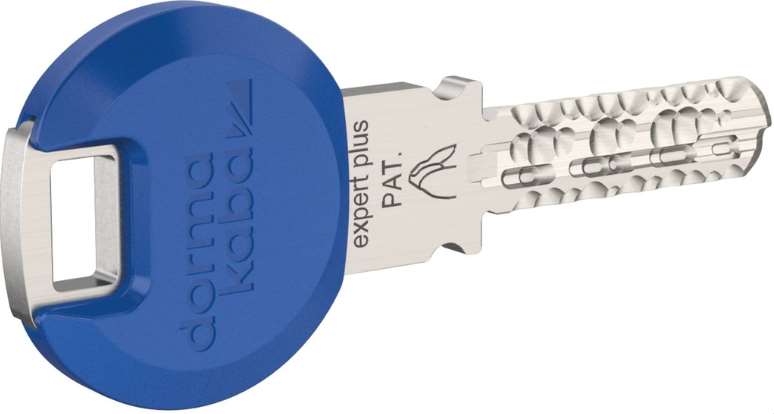

- Optional key with RFID fob for combined mechanical and electronic access
Applications
Interior glass systemsStorefrontsPartitionsOfficesResidences
